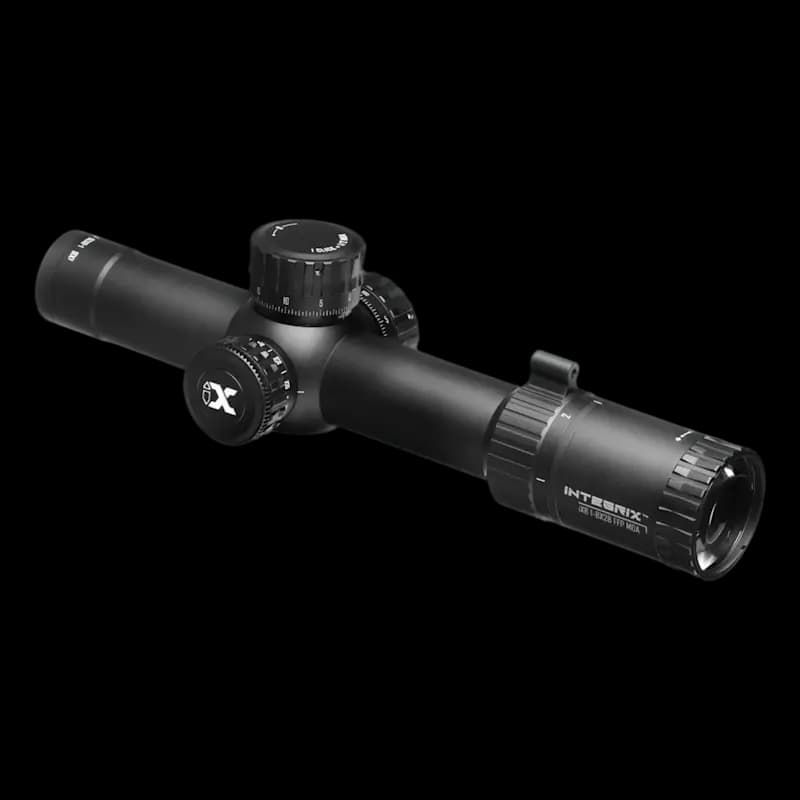

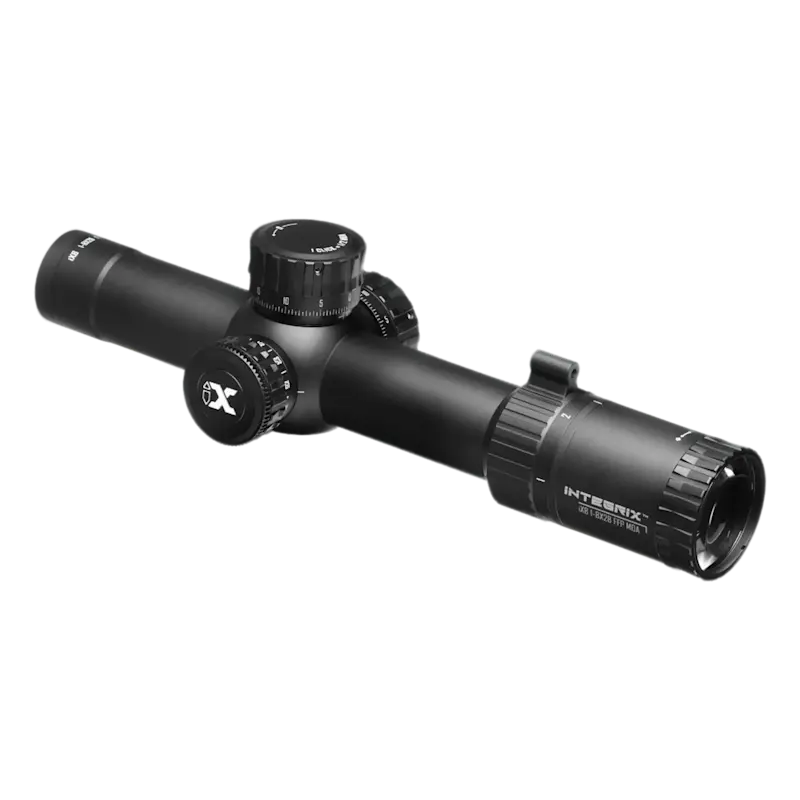

92% light transmission for maximum low light performance, and magnification out to 8X without distortion for flexibility longer range. Available in FFP with a rifleman's CQB reticle in Mil or MOA.
Details
- Individually centration tested German SCHOTT glass and Japanese OHARA
- Multi-coated lenses for glare, reflection, and scratch resistance
- Over 92% light transmission for maximum low light performance
- Edge-to-edge HD image quality, contrast, and resolution with minimized aberrations
- Extra wide 22 to 3 degree angular FOV (116 to 14 ft at 100 yards) with large consistent eyebox
- Durable and reliable environmental performance rated from -40°F (-40°C) to 160°F (71°C)
- 3x Nitrogen purged for fog and IPX7 waterproofing
- Rated for .338 LAPUA Magnum with live-fire testing and collimator confirmation onsite
- Red and green reticle Illumination with 10 brightness intensities and 12 hour automatic shutoff

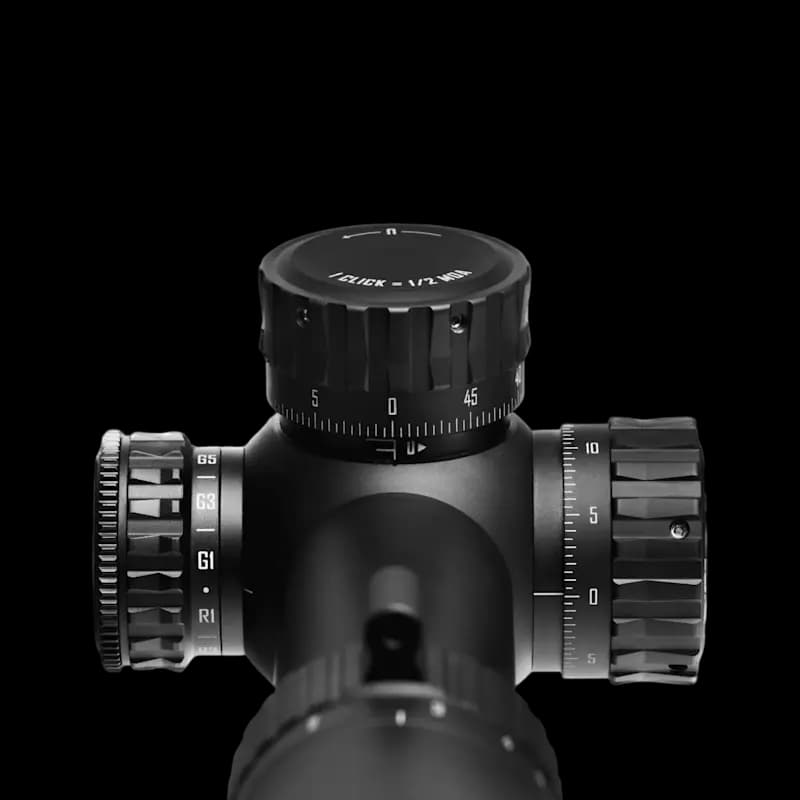

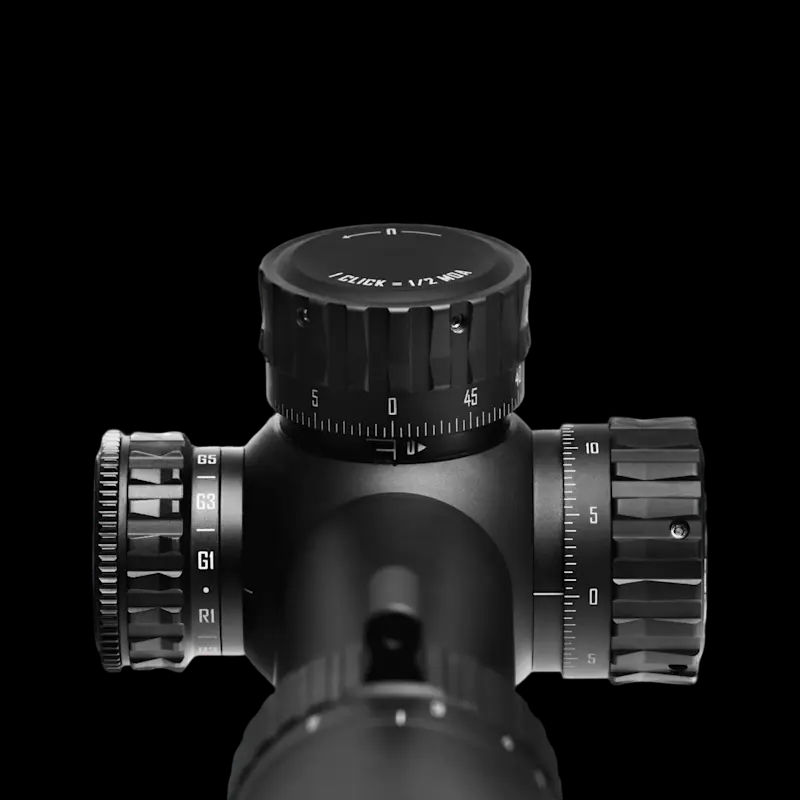

- Intuitive lockable and zero resettable windage and elevation turrets
- Serrated power ring and rear adjustable eyepiece
- Fixed parallax at 100 yards for effective CQB and longer range acquisition
- Effortless magnification transitions with oversized throw lever included
SPEC
- Auto Shutoff - 12 hrs
- Battery Loading - Left Side Turret
- Battery Type - CR2032 3V
- Brightness Mode(s) - Manual
- Brightness Settings - 10
- Caliber Rating - .338 Lapua Magnum
- Click Value - 1/2 MOA
- Diopter Adjustment -3D to +2D
- Diopter Type - Friction Secured
- Dustproof Rating - IP67
- Elevation Travel - 100 MOA (Up 60 MOA / Down 40 MOA)
- Exit Pupil - 10 - 3.5 mm
- Eye Relief - 3.74 in (95 mm)
- Field of View (Angular FOV) - 21.8° - 2.7°
- Field of View (Linear FOV) - 115.5 - 14.1 ft @ 100 yds (38.5 - 4.7 m @ 100 m)
- Focal Plane - FFP (First Focal Plane)
- Illuminated - Yes
- Light Transmission - 92%
- Magnification Max. - 8X
- Magnification Min. - 1X
- Materials - 6061-T6 Aluminum
- Parallax - 100 yds (91.4 m )
- Parallax Control - Fixed
- Range Estimation - Yes
- Reticle - A1 MOA
- Reticle Color - Red and Green
- Reticle Type - Etched Glass
- Surface Finish - Anodized
- Temperature Operating Range -40⁰F to +160⁰F (-40⁰C to +71⁰C)
- Travel Per Revolution - 50 MOA
- Waterproof Rating - IPX7
- Weight - 25.3 oz (716 g)
- Windage Travel - 50 MOA
- Zero Stop - No
