HELIA ballistic turrets can be mounted by the user in a few simple steps. The clearly identifiable stickers supplied provide the option of adding 100% precise markings for individual ballistics, which can be changed quickly and easily if required.
The HELIA ballistic turrets are&nbsp;available only for rifle scopes HELIA and&nbsp;HELIA 3.

The HELIA&nbsp;ballistic turrets (BT) take the guesswork out of aiming at different shooting distances. They impress with user-friendly operation and individual adjustment to the ballistics.

KAHLES

The HELIA&nbsp;ballistic turrets (BT) take the guesswork out of aiming at different shooting distances. They impress with user-friendly operation and individual adjustment to the ballistics.

Kahles Ballistic Turret (Helia)

Display

Full Description

Short Description

List on Website

Sell Item

FEATURES:
<ul>
<li>Ideal for hide/stand hunting with exceptionally high light transmission, whether dawn, dusk or night</li>
<li>Perfect image with best contrast and wide, brilliant field of view</li>
<li>Powerful optics system with exceptional edge sharpness</li>
<li>Day/night illuminated reticle with intelligent automatic switch-off</li>
</ul>

SPECIFICATIONS:
<ul>
<li>Magnification: 2.4 - 12</li>
<li>Objective lens diameter: 56 mm</li>
<li>Eye relief: 95 mm</li>
<li>Field of view: 16.5 - 3.3 m/100 m</li>
<li>Diopter compensation: +2 / -3.5 dpt</li>
<li>Twilight factor (DIN 58388): 7.4 - 25.9</li>
<li>Impact correction per click: 0.36 inch (100 yds) / 10 mm (100 m) / .1 MIL</li>
<li>Adjustment range (E/W): 1.9 / 1.9 m</li>
<li>Tube diameter: 30 mm</li>
<li>Length: 359 mm</li>
<li>Weight: 680 g</li>
<li>Focal plane: 2</li>
<li>Illuminated: Yes</li>
<li>Warranty: 10 years</li>
</ul>

The Kahles Helia 2.4-12x56i impresses with an uncompromising focus on the real essentials: functionality, reliability, handling and aesthetics. The perfect tool for hunting.

The Kahles Helia 2.4-12x56i impresses with an uncompromising focus on the real essentials: functionality, reliability, handling and aesthetics. The perfect tool for hunting.

Kahles Helia 2.4-12X56I Rifle Scope

The K525i combines maximum optical performance and precision with unique handling and ergonomics. A rugged riflescope for professionals, with windage optional left or right, precise illuminated reticles in 1st focal plane and the unique TWIST GUARD windage.

FEATURES:
<ul>
<li>Maximum optical performance &ndash; field of view, high contrast image, high definition</li>
<li>Absolutely reliable repeat accuracy and precise, clearly defined click mechanism</li>
<li>Optional left or right-side windage</li>
<li>Parallax wheel integrated into the elevation turret (patented) (20 m to&nbsp;&infin;)</li>
<li>Innovative TWIST GUARD windage (patented)</li>
<li>Precise illuminated reticle in 1st focal plane</li>
</ul>

SPECIFICATIONS:
<ul>
<li>Magnification: 5 - 25</li>
<li>Objective lens diameter: 56 mm</li>
<li>Exit pupil: 9.5 - 2.3 mm</li>
<li>Eye relief: 95 mm</li>
<li>Field of view: 7.1 - 1.5 m/100 m</li>
<li>Diopter compensation: +2 / -3.5 dpt</li>
<li>Twilight factor (DIN 58388): 16.7 - 37.4</li>
<li>Impact correction per click: .1 MRAD | &frac14; MOA</li>
<li>Adjustment range (E/W): 2.9 / 1.3 m/100 m</li>
<li>Parallax adjustment: 20 m till &infin;</li>
<li>Tube diameter: 34 mm</li>
<li>Length: 377 mm</li>
<li>Weight: 970 g</li>
<li>Illuminated: Yes</li>
<li>Warranty: 10 years</li>
</ul>

The Kahles Ki 5-25x56 combines maximum optical performance and precision with unique handling and ergonomics.&nbsp;

The K525i DLR  combines maximum performance and precision with unique handling and ergonomics. Optimised for the fast action of Dynamic Long Range competitions.

Kahles Ki 5-25x56 DLR CCW SKMR4 W-L Riflescope

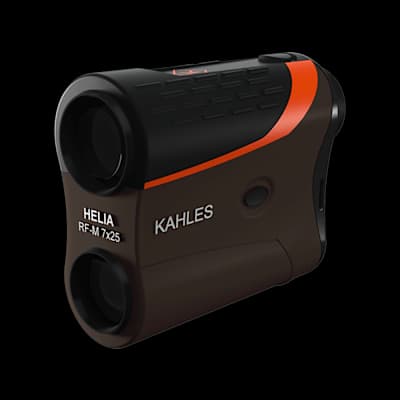

The compact HELIA RF-M 7x25 offers ergonomic design, intuitive and simple handling, and is equipped with a large field of view and relevant hunting features. You are able to measure the distance simple and fast and you can concentrate, during the hunt, on the real essentials.

FEATURES:
<ul>
<li>Easy and reliable targeting up to 2,000 m</li>
<li>Ergonomic design, intuitive handling, simple menu navigation</li>
<li>Exceptional edge to edge clarity and large field of view of 117 m/1,000 m</li>
<li>Premium-quality OLED display with five manual brightness settings and display in meter or yards</li>
<li>EAC-function (Enhanced Angle Compensation) for angle correction (patented)</li>
<li>Scan mode, temperature- and air pressure measurement</li>
<li>Extra-long battery lifetime ~ 4,000 measurements</li>
</ul>

The compact HELIA RF-M 7x25 offers ergonomic design, intuitive and simple handling, and is equipped with a large field of view and relevant hunting features.

The compact HELIA RF-M 7x25 offers ergonomic design, intuitive and simple handling, and is equipped with a large field of view and relevant hunting features.
