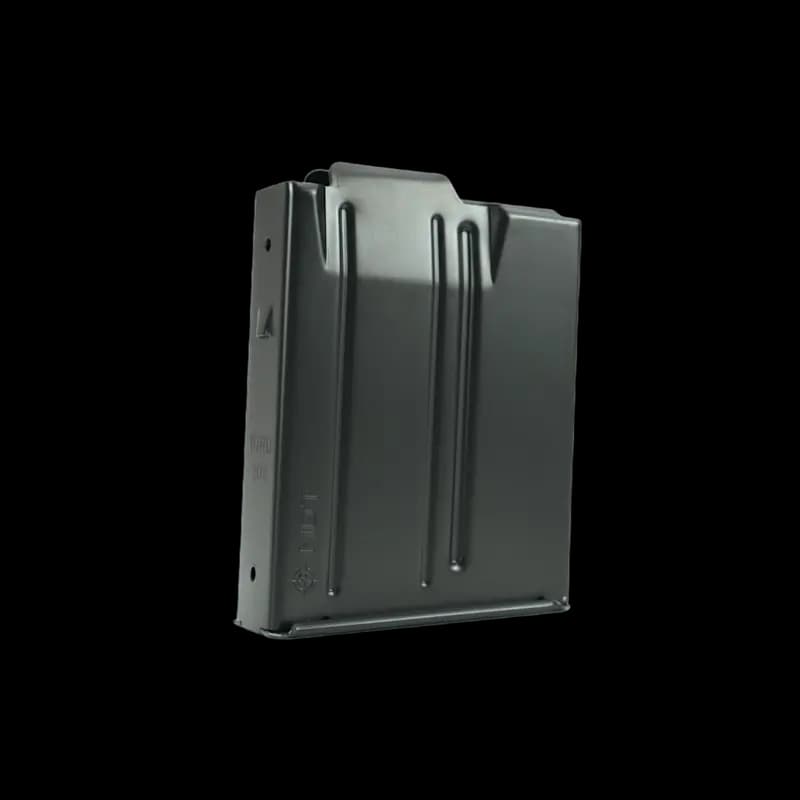

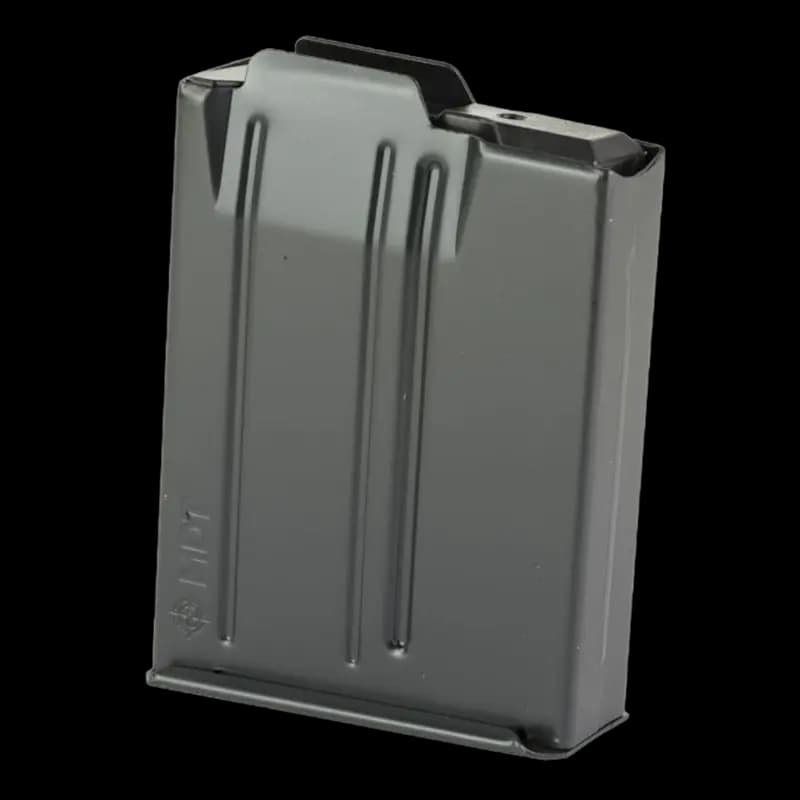

MDT AICS .308/6.5 Creedmoor 10 Round Metal Magazine with Binder Plate

DETAILS

MDT AICS-pattern metal magazines are manufactured from high strength steel, nitrided, and finished inside and outside with Cerakote Elite for ultimate durability, corrosion resistance, and friction reduction.

SPECIFICATIONS

• 3.055” Outside Length
• 2.870” max cartridge overall length (COAL) with binder plate
• 2.960” max cartridge overall length (COAL) without binder plate (see limitations below)
• 3.90” Rear Height

MDT 10-round magazines are approximately ¾” shorter in height than standard AICS 10-round magazines due to MDT’s unique Double Stack to Single Feed (DSSF) transition design, allowing easier mag changes when shooting prone.

10-round magazine includes 2 internal ribs that help reduce friction between the cartridge and magazine body and provide a smooth transition from a double stack to single feed at the top of the magazine.

COMPATIBILITY

These magazines will need to be slightly modified to function with Howa 1500 SA rifles.

• 308WIN
• 6mm Creedmoor
• 243WIN
• 260 Rem
• 6.5 Creedmoor
• 7mm-08 Win
• 308/7.62x51 NATO
• 22 - 250 Rem (will work at a reduced capacity)

BINDER PLATE DETAILS

• The magazines with front binder plates are compatible with all rifles equipped with AICS-pattern bottom metal or chassis systems. The binder plate holds the cartridges back from the front of the magazines and guides them past the bottom of the feed ramp. The maximum cartridge overall length (COAL) that will fit in this magazine is 2.870”.
• The magazines without front binder plates allow a maximum cartridge overall length of 2.960”. These are compatible with all AICS-pattern bottom metal and chassis systems, but most common actions such as Remington 700 and Savage 10/11 will require modifications to the receiver (i.e. notching out the bottom of the feed ramp) to prevent the bullet tips from catching on the bottom of the feed ramp
